Load Step: SRADIATE

 This is the first topic This is the last topic JavaScript is required for expanding text JavaScript is required for the print function

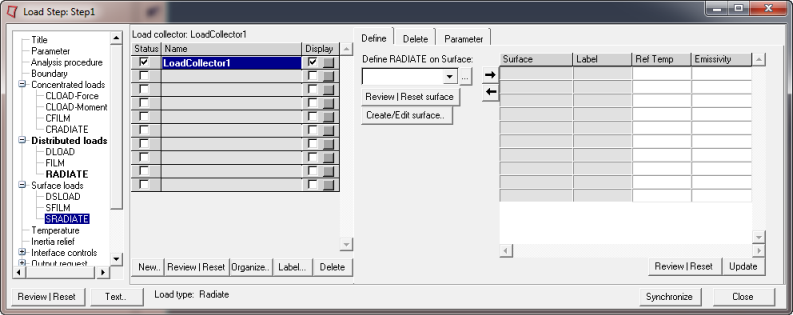

The SRADIATE dialog allows you to define the *SFILM card on Abaqus surfaces (*SURFACE).  To open the dialog in the Load Step window, select SRADIATE from the tree and a load collector from the Load collector table.

The dialog contains three tabs:

Define

Delete

Parameter

step_mgr_sradiate

You can use Abaqus Contact Manager to create Abaqus surfaces.
