Load Step: RADIATE: Define Tab

 This is the first topic This is the last topic JavaScript is required for expanding text JavaScript is required for the print function

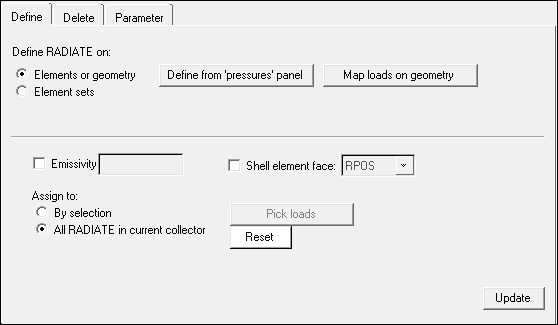

The Define tab allows you to define *RADIATE cards on individual elements or geometry (surfaces) as well as on element sets.

step_mgr_radiate_define_elem_geom

For Define RADIATE on:, the following options are available:

•Elements or geometry
•Element sets

The layout of the Define tab changes, based on your selection.





See Also:

Load Step: RADIATE
