Load Step: File Format

 This is the first topic This is the last topic JavaScript is required for expanding text JavaScript is required for the print function

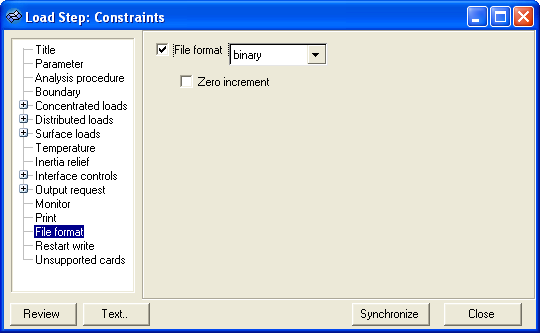

The File format option in the tree allows you to define the *FILE FORMAT card.  This option is available when a standard Abaqus template is loaded.

The supported attributes are: File format and Zero increment.

See the Abaqus online documentation for a detailed description of these attributes.  Click Update to activate the monitor attributes defined in the Altair HyperMesh database.

step_mgr_file_format
