Load Step: CFILM

 This is the first topic This is the last topic JavaScript is required for expanding text JavaScript is required for the print function

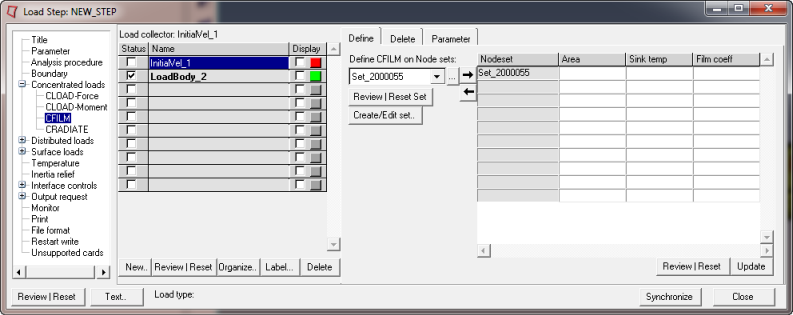

The CFILM dialog allows you to define the *CFILM card on node sets.  To open the dialog in the Load Step window, open Concentrated loads in the tree, select CFILM, and select a load collector from the Load Collector table.

The dialog contains three tabs:

Define

Delete

Parameter

step_mgr_cfilm_define_tab
