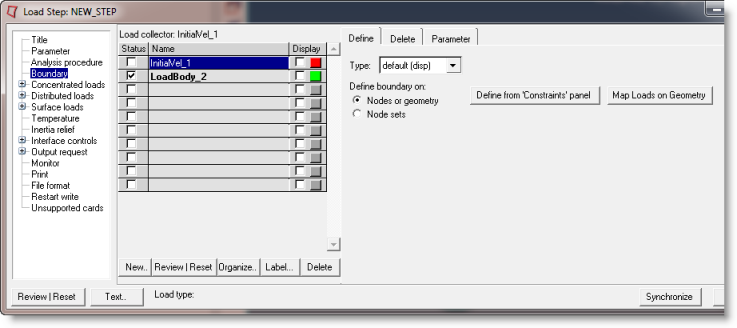

The Boundary dialog allows you to define and edit the *BOUNDARY card.  To open this dialog, select Boundary from the tree and a load collector from the Load collector table.

The Boundary dialog contains three tabs:

Define

Delete

Parameter

step_mgr_boundary
