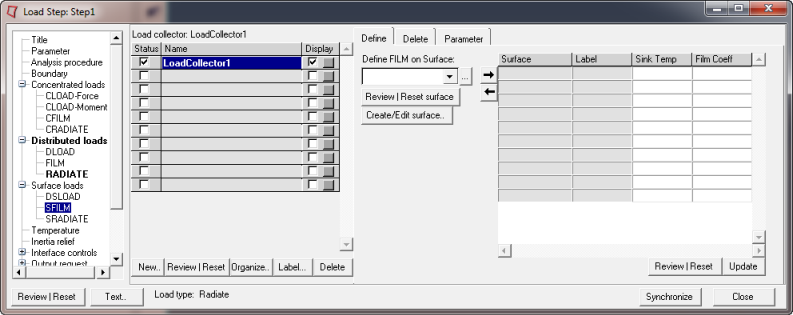

The SFILM dialog allows you to define the *SFILM card on Abaqus surfaces (*SURFACE).  To open the dialog in the Load Step window, select SFILM from the tree and a load collector from the Load collector table.

The dialog contains three tabs:

Define

Delete

Parameter

step_mgr_sfilm

You can use Abaqus Contact Manager to create Abaqus surfaces.
