AcuConsole is the graphical user interface (GUI) wrapper
for the AcuSolve solver.
After launching AcuSolve a folder is written out named
MESH.DIR containing mesh files and an input file containing the
solver commands. This input file can be edited directly for any appropriate changes in the
problem. The commands have the following general
syntax.
Where COMMAND is the name of the command, such as
ANALYSIS or MATERIAL_MODEL, qualifier is a mandatory
qualifier of the command, parameter1 to parameter are the optional parameters of the command

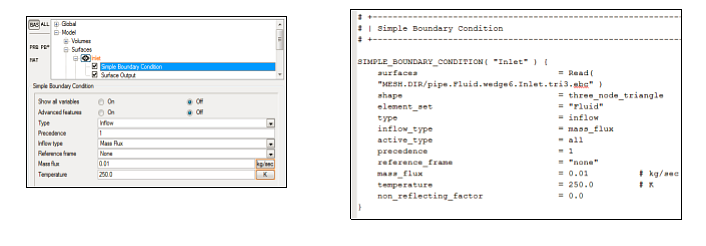

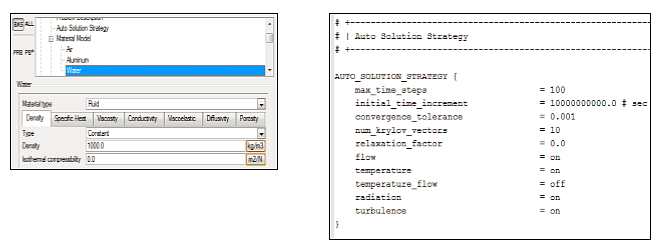

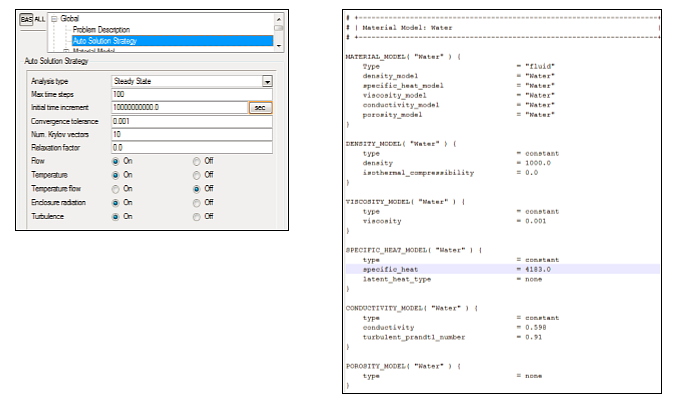

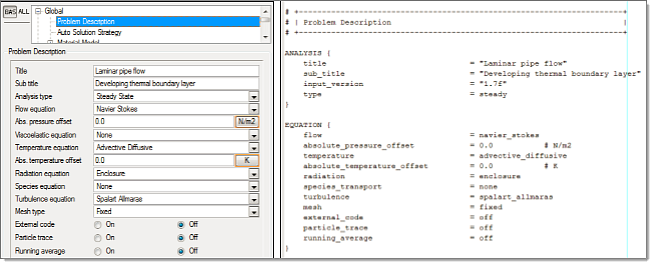

and value1 to valueN are the corresponding values of the parameters. Below is the
description of a simple pipe flow with the comparison between GUI and input file
commands.
