Quick Pick enables you to delete individual streamlines from the rake.
When a rake is picked, the seed associated with the selected streamline is made
current. An example would be if a streamline rake has been created and you want to
reduce the clutter, as shown in the pictures below. This feature allows you to

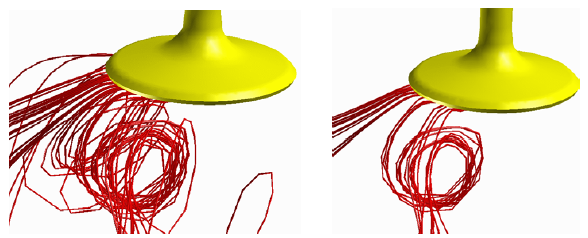

delete individual streamlines from the rake. Figure 1. Streamlines Formation Below Engine Value
As shown above, the vortex formation on the right is more clearly visible than in the
picture on the left. The reduction in clutter was accomplished by:
Double-clicking with the left mouse button (M1). The Streamline panel
automatically opens and the Seed Number is displayed in the Seed sub
menu.
Changing the Mode to Delete.
Clicking OK. The Seed and the Streamline are
deleted.
